Mur-lok^® Polypropylene Quick-Connect Fittings

G.A. Murdock's line of Mur-lok^® Polypropylene Fittings are designed for fluid applications where risk of chemical attack and/or leak resistance is of concern.

All Mur-lok fittings are constructed of FDA approved materials and are suitable for food contact.



Fitting Features

- Leak Resistant Dual EPDM O-rings - Chemical Resistant Polypropylene - NSF/ANSI Standard 58 Certified

- 150 p.s.i @ 70ºF (10 Bar @ 20ºC) - 60 p.s.i @ 140ºF (4 Bar @ 60ºC) - For use with Plastic or Soft Metal Tubing

Fitting Options

Standard Mur-lok^® fittings are constructed of white polypropylene with two EPDM o-rings at each quick-connect end.

Our fittings are also available with the following options:

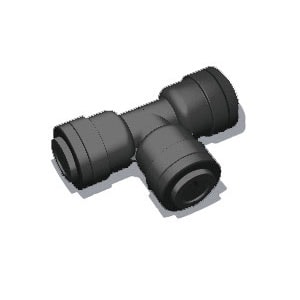

	UV Resistant Black Polypropylene Mur-lok Polypropylene Fittings are now available in UV resistant black polypropylene. To place an order for black fittings, simply add a B to the end of the Mur-lok fitting part number, for example: R0620626B.

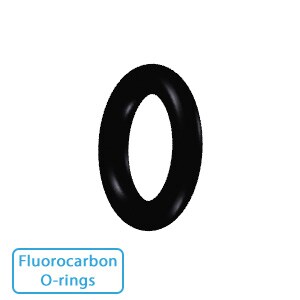

	Fluorocarbon O-rings Mur-lok Polypropylene Fittings can now be ordered with fluorocarbon o-rings for increased chemical resistance over the standard EPDM o-rings. There will be an additional cost per o-ring. Fittings with fluorocarbon O-rings will have a V on the end of the Mur-lok fitting part number, for example: R0620626V or R0620626BV. If you are working with chemicals, please refer to a chemical compatibility chart to ensure the fitting and o-ring materials will meet your needs.
	Bulk and Custom Packaging Mur-lok Polypropylene Fittings are normally packaged in Mur-lok branded 10-pack resealable bags. They can also be ordered as bulk packaged in larger bag and box quantities. Items ordered with bulk packaging will have a .00 at the end of the Mur-lok fitting part number, for example: R0620626B.00.  Contact us for additional kitting, labeling, and bagging options.
